DIMPLE DIE STUDIO

dimple dies for sheet metal

Design a dimple die for any hole — round, hex, star, or your own shape — and print it. Pick the size, the sheet thickness and how you press it; take home both halves and the hole contour for cutting.

Coming soon

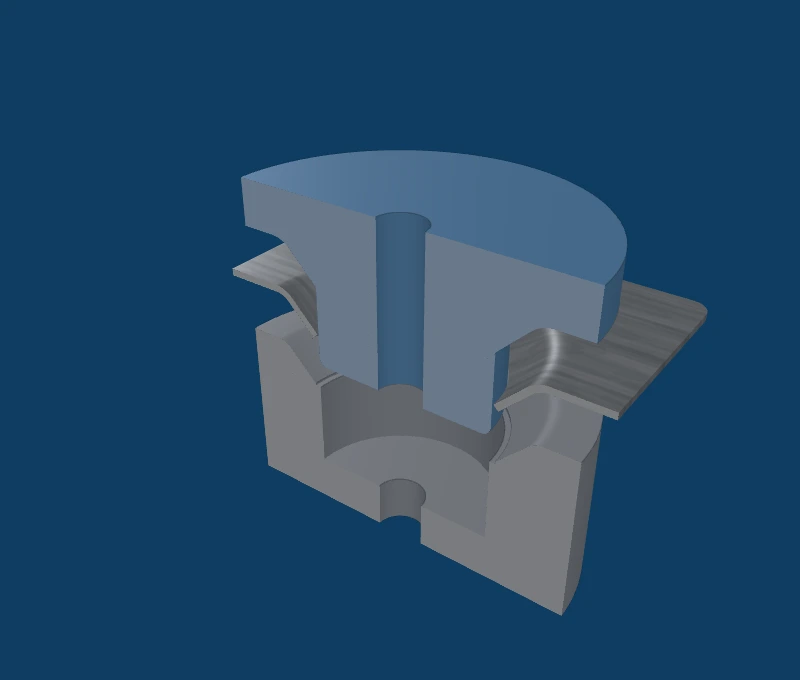

Cut-away view of a dimple die: the upper half, the sheet, and the lower half with the funnel and the pilot pin. — Cut in half: the sheet is drawn into the funnel and the flange grows from the inside out.

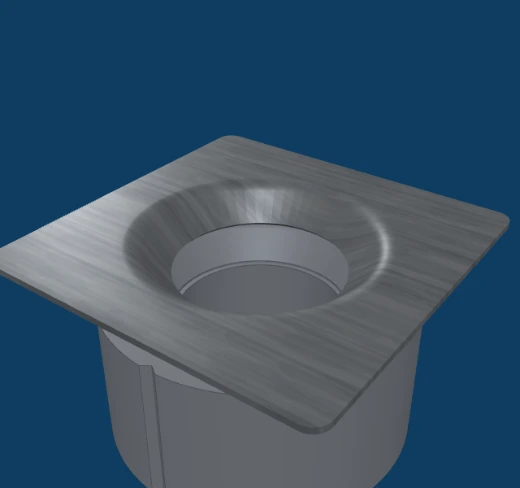

Round dimpled hole in a steel plate. — Round

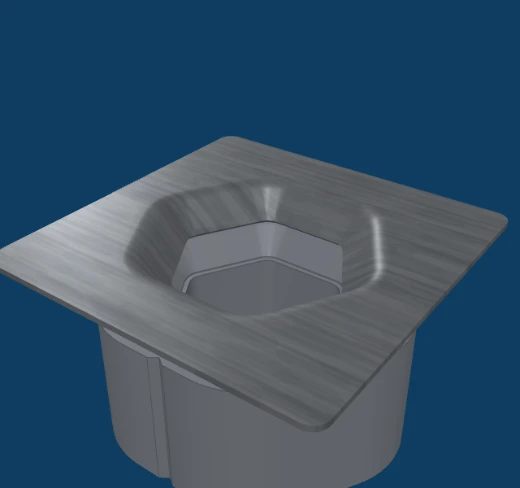

Hexagonal dimpled hole in a steel plate. — Hex

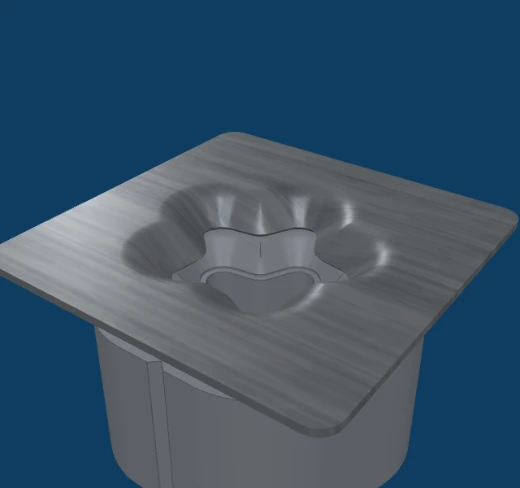

Star shaped dimpled hole in a steel plate. — Star

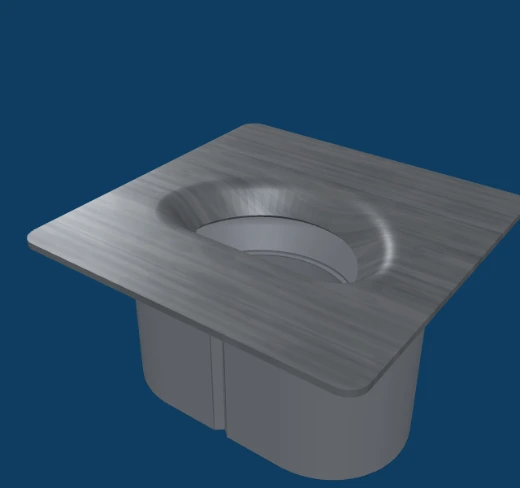

D shaped dimpled hole in a steel plate. — D-shape

Any hole shape and size, matched to your sheet thickness.
Press it with a bolt or in a flat press — the die is built for the way you work.
Both halves as STL, STEP or print-ready 3MF.
The hole contour as DXF, ready for your plasma or laser cutter.
See the cross-section with every dimension, and watch the press stroke before you print.
